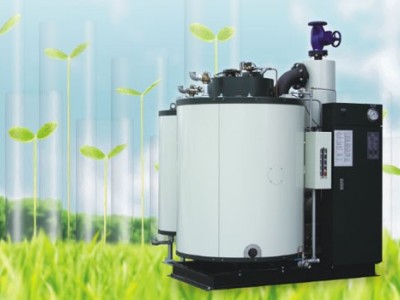

燃油貫流式蒸汽鍋爐
產品介紹
該系列鍋爐自點火起至產生蒸汽只需要3~5分鐘時間，是普通的燃油氣鍋爐所需時間的十分之一；比普通燃油氣鍋爐至少節省20%~30%燃料。在結構上，該型號鍋爐為立式結構，內部均勻分布排列有水管，燃燒器放置于鍋爐頂部，自上而下燃燒，采用微正壓燃燒方式
性能優勢
1、點火2~4分鐘發生蒸汽
prompt STEAMING AFTER 2~4 MINUTES OF LIGHTING
點火2~4分鐘即可獲得足壓蒸汽。
WITH SUFFICIENT STEAM OBTAINED AFTER 2~4 MINUTES OF LIGHTING，IMMEDIATE WORK IS AVAILABLE.
2、安全裝置及控制
SAFETY EQUIPMENT＆CONTROLLING
燃燒、蒸汽壓力及水位均全自動控制，因此運轉既安全又經濟。
FULL AUTO-ConTROLLED COMBUSTIonSTEAM PRESSURE AND WATER LEVEL PROVIDE SAFETY＆EConOMIC OPERATION.
3、傳熱性佳
GOOD HEAT TRANSFER
燃燒氣體高速流動水管群間。熱對流佳熱吸引快，傳熱效果佳。
COMBUSTION GAS FLOW THROUGH THE FIN OF THE TUBE.THE HEAT TRANSMIT IS QUICK AND RESULT IS WELL.
4、運轉安靜
送風機及燃燒聲音皆比舊式同型產品低5~6db，即使在鍋爐旁邊作業變不受影響。
THE SOUND5~6DBOF EXHAUST FAN AND COMBUSTION IS LOWER THAN THE OLD TYPE SILENT SOUND OF OPERATION OFFERING COMFORTABLESURROUNDINGS SURROUNDINGS
5、效率92%~96%
EFFICIENCY 92%~96%
爐體構造吸熱效果佳，燃燒熱效率高達92%~96%
BOILER STRUCTURE OF EXCELLENT HEAT-ABSORPTION EFFECT PROVIDES SATISFIED COMBUSTION EFFICIENCY 88%~96%
6、高技術、高品質
HIGH TECHNOLOGYHIGH QUALITY
全自動CO2焊接，一貫化的生產，部件規格統一，品質有保障。
THE FULL-AUTOMATIC CO2 WELDS.THE PRODUCTION OF THE ConSISTENCY AND PARTS SPECIFICATION UNIFYRESULTING IN HIGH QUALITY PRODUCTS
7、整機調試出廠、現場免安裝
THE OVERALL DEBUGGING FACTORY
鍋爐整體調試出廠、現場免安裝，設備到達使用現場通電后即可使用。
BOILER OVERALL COMMISSIonING OF THE FACTORYTHE SITE IS NOT INSTALLEDTHE DEVICE CAN BE USED TO REACH THE SCENE AFTER THE USE OF POWER.
8、水管溫度測試
Water Tube Temperature Sensor
可偵測水管溫度，以檢測鍋爐是否有產生水垢，若偵測到溫度上升至設定溫度時，則鍋爐會自動停止運轉。
TO SENSE TEMPERATURE OF WATER TUBES IN ORDER TO DETECT WHETHER WATER SCALE HAS OCCURRED. OF TEMPERATURE REACH THE SET VALUETHE BOILER WILL STOP ITS OPERATION
9、爐體溫度偵測器
Boiler Body Temperature Sensor
可偵測蒸汽的溫度，當溫度超出設定值時自動斷電停機，確保鍋爐運轉安全。
TO ENSURE BOILERS OPERATE SAFELYTHE SENSOR HELPS TO CHECK THE STEAM TEMPERATURE
SO THE BOILER WOULD SELF DEENERGIZING WHEN THE TEMPERATURE EXCEEDS THE SET VALUE
10、自動排放裝置
Automatic Discharge Device
可偵測爐水濃縮電導度，當電導度達到排放標準時，鍋爐會自動將爐水排出，可穩定控制爐水的品質提高蒸汽品質，避免爐體苛性脆化、水垢產生降低鍋爐效率及水管損壞。
USE TO DETECT BOILER WATER ConCENTRATED ELECTRICAL CONDUCTIVITY.THE BOILER WATER WILL SELF-DISCHARGE WHEN THE ELECTRICAL ConDUCTIVITY REACH THE DISCHARGE STANDARD THIS DEVICE HELPS TO ConTROL BOILER WATER’S QUALITYIMPROVE STEAM QUALITY AND AVOID FURNACE CAUSTIC EMBRITTLING. IT ALSO PREVENTS WATER SCALE REDUCE THE BOILER EFFECIVENESS AND DAMAGE THE WATER TUBE.
技術參數
| 鍋爐型號 | LSS0.1-0.4-Y(Q) | LSS0.2-0.4-Y(Q) | LSS0.3-0.4-Y(Q) | LSS0.5-0.4Y(Q) | LSS0.7-0.4-Y(Q) | LSS1-0.4-Y(Q) |
| LSS0.3-0.7-Y(Q) | LSS0.5-0.7Y(Q) | LSS0.7-0.7-Y(Q) | LSS1-0.7-Y(Q) |
| 額定蒸發量(t/h) | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1 |
| 額定蒸汽(Mpa) | 0.4 0.7 1.0 |
| 蒸汽溫度(℃) | 151 170 184 |
| 給水溫度(℃) | 20 |
| 熱效率（%） | 95.82% |
| 使用燃料 | 輕柴油重油天然氣 |
| 電機總功率 | 1.1 | 2.6 | 2.66 | 2.96 | 3.2 | 4 |
| 燃料消耗 | 輕油 | 6.6 | 14 | 18 | 34 | 49 | 68 |
| 天然氣 | 9 | 19 | 24 | 42 | 55 | 79 |
| 最大運輸重量 | 0.83 | 1 | 1.28 | 2.1 | 3.5 | 4.1 |
| 最大運輸尺寸 | 0.8X1.94 | 0.9X2.7 | 1.2X2.58 | 1.3X2.95 | 1.6X3.0 | 1.5X3.2 |
| 說明：1、表中數據及圖片僅供參考，產品以實物為準，如因改型而變更恕不另行通知； 2、預制、預留及鍋爐房設計請聯系確認有關數據。 |
